HSD MT1090-140-HY-380V-DX electric spindle — description and applications

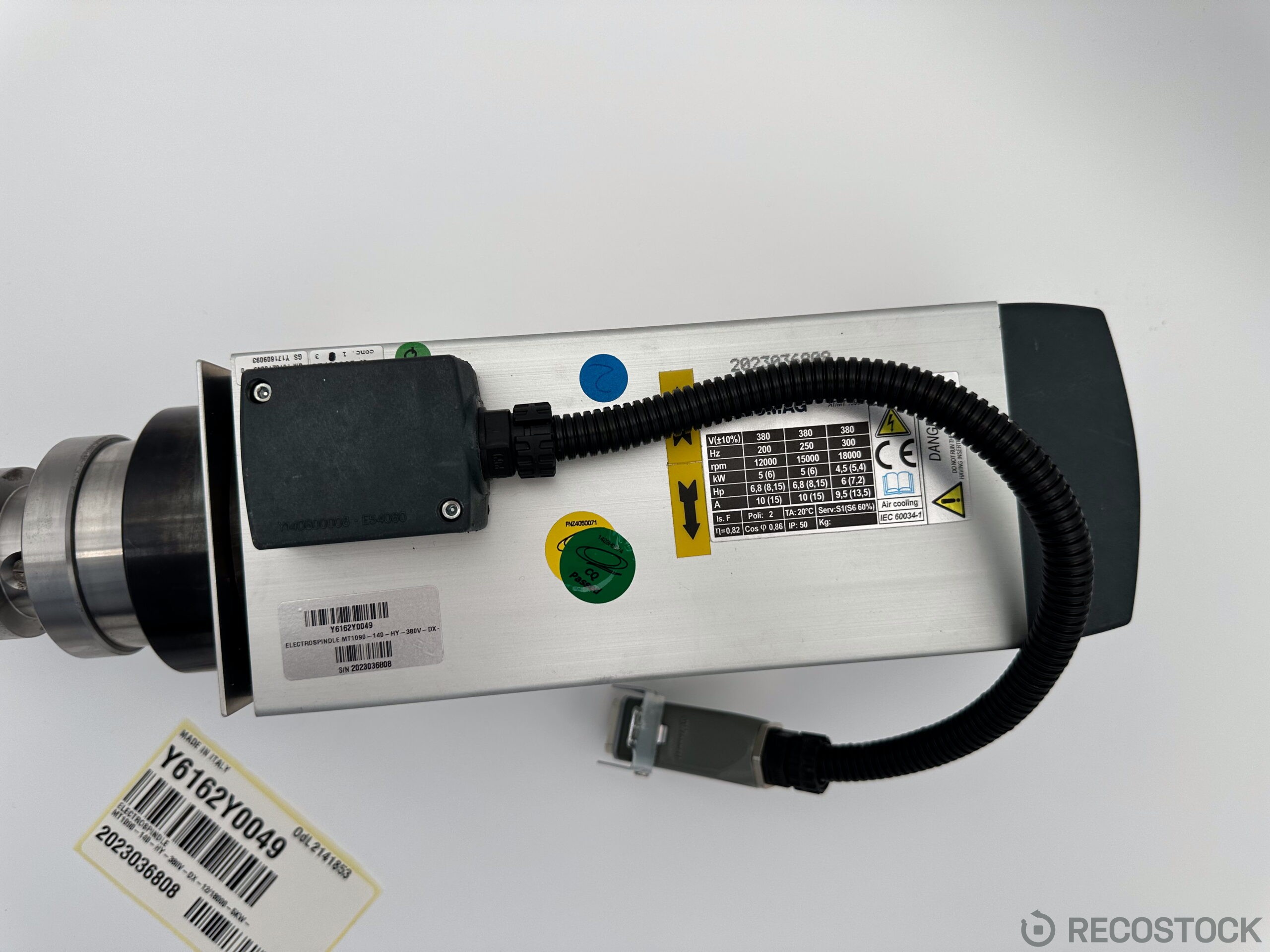

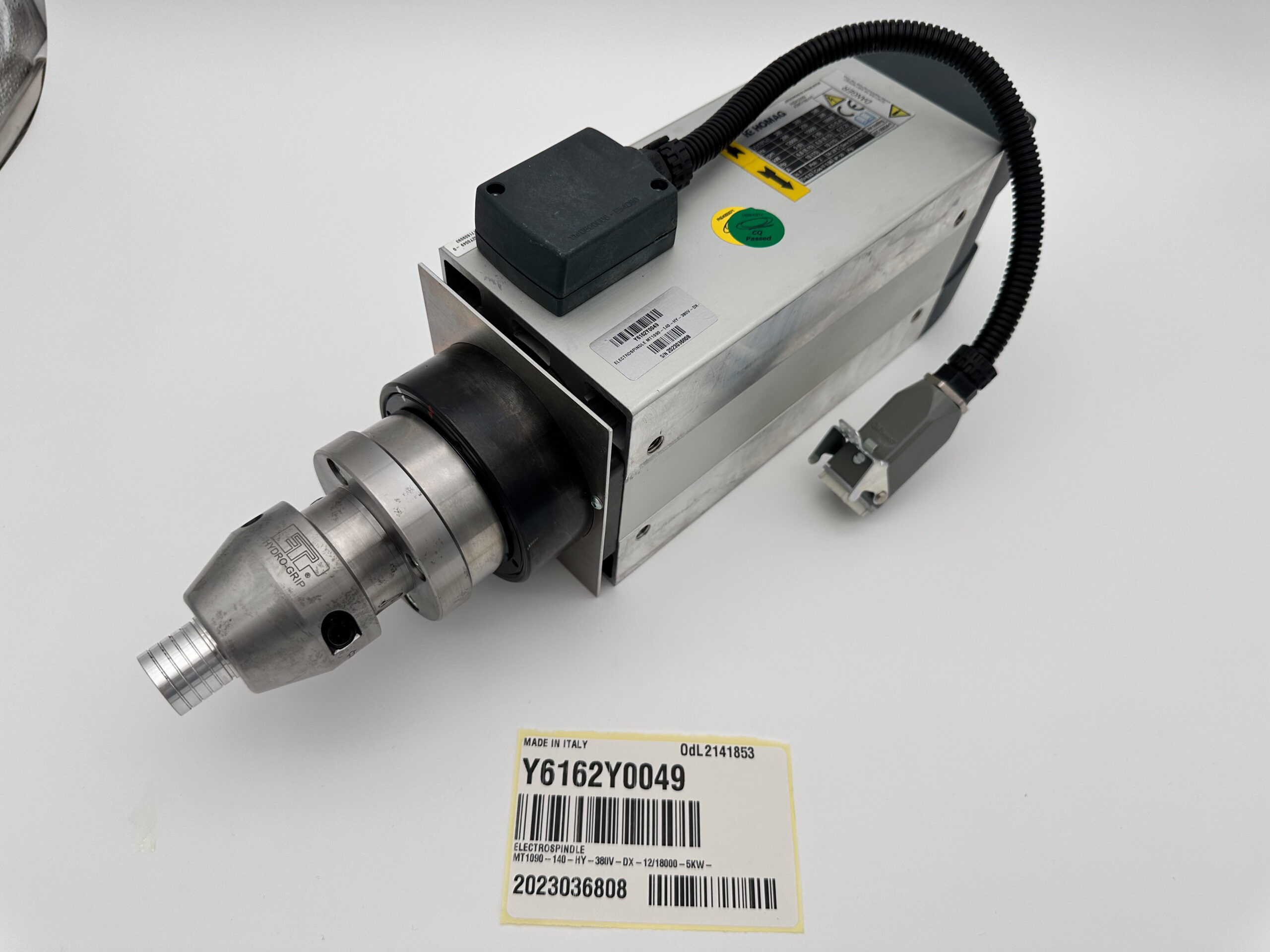

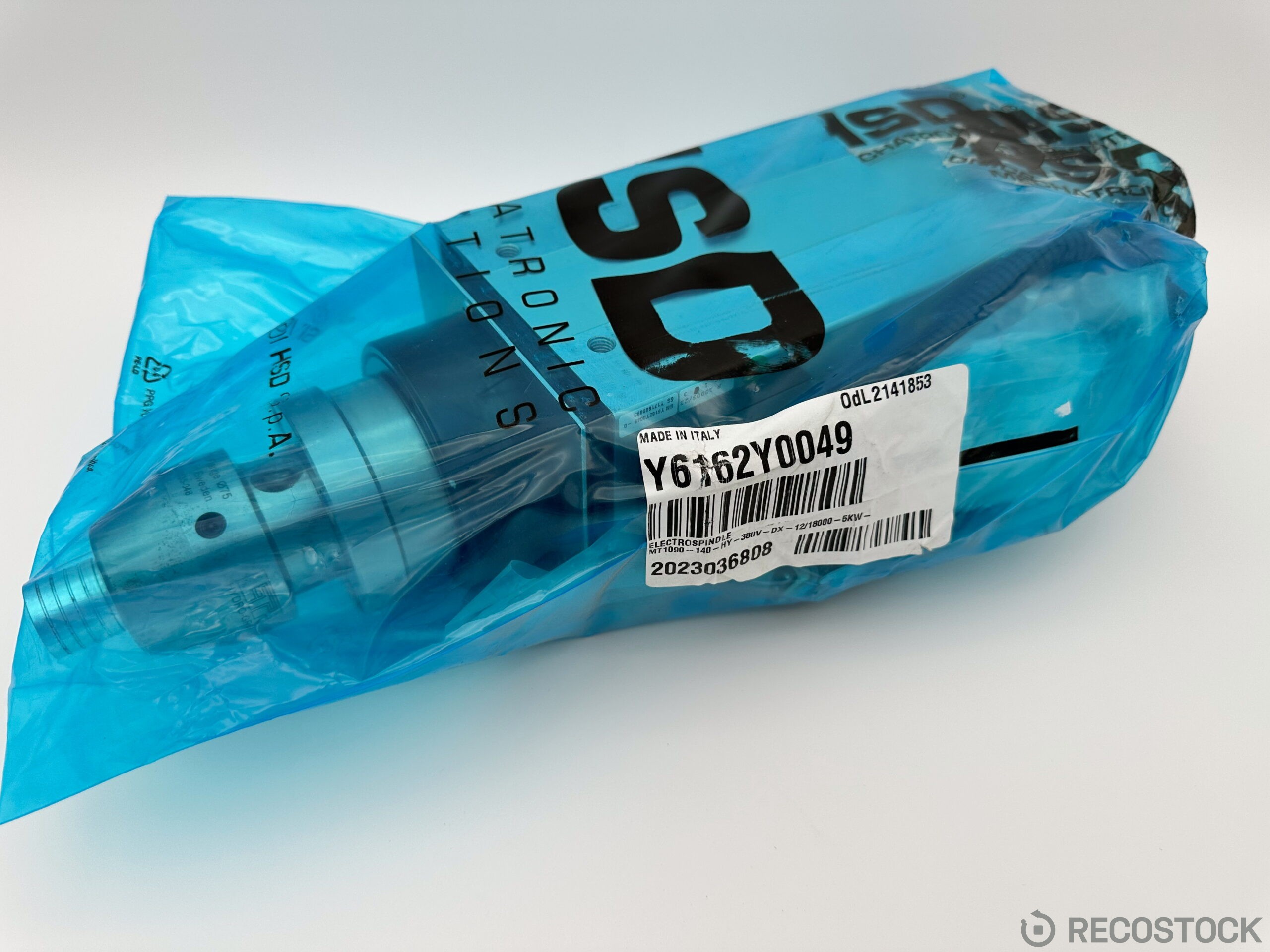

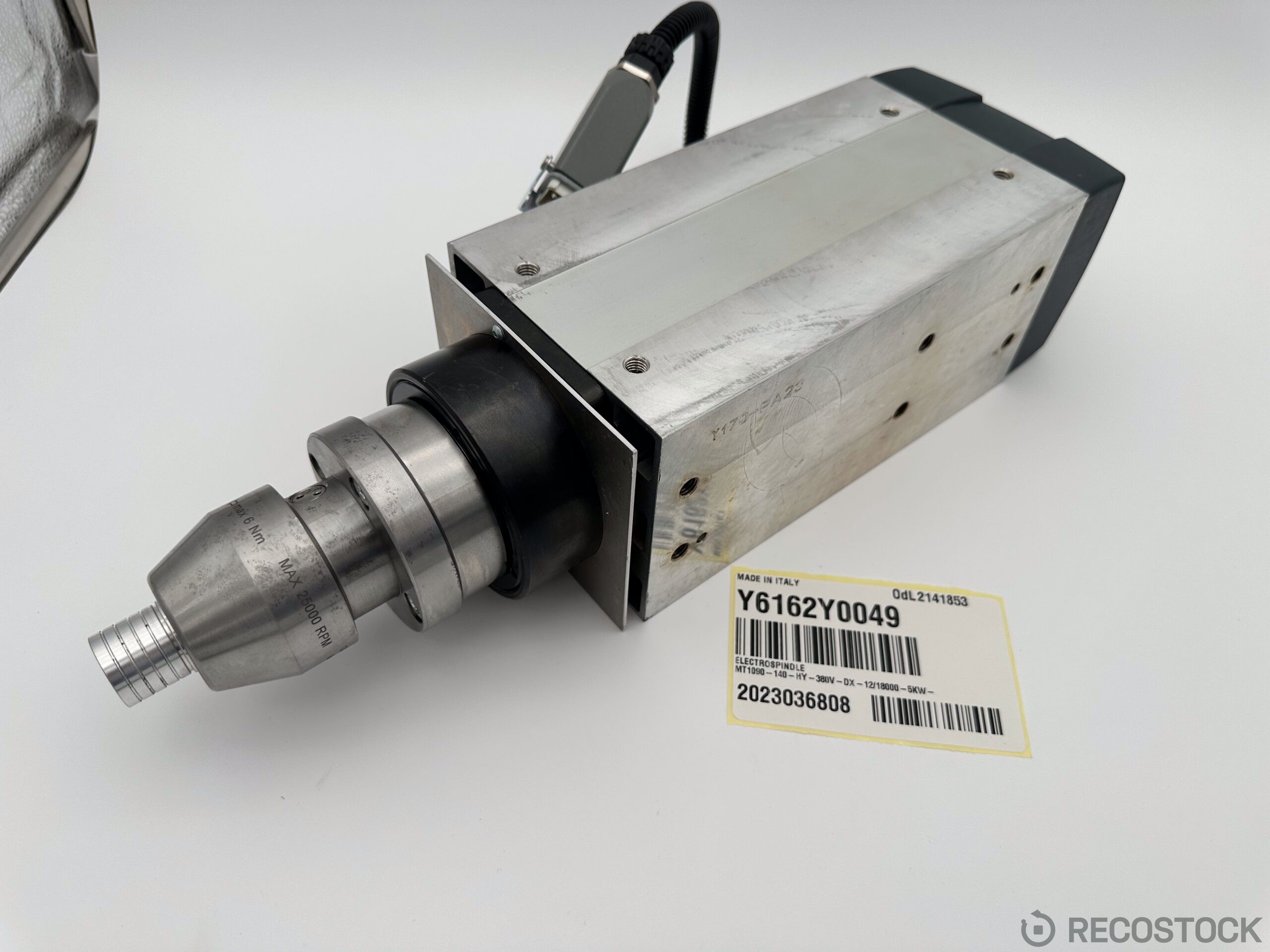

The HSD MT1090-140-HY-380V-DX electric spindle is a precision electrospindle-type drive unit manufactured by the Italian company HSD S.p.A. (Made in Italy), designed for installation in the machining heads of CNC machining centers. Its construction and the markings on the nameplate indicate typical use in machines for processing wood, furniture panels and wood-based materials, including HOMAG machining centers. The product joins the RECOSTOCK range as surplus stock – brand new (factory new), unused and never mounted on a machine.
Components of this type are sought after by maintenance departments in furniture manufacturing plants, woodworking machinery integrators and technical service teams supporting CNC machining centers. The HSD MT1090-140-HY-380V-DX electric spindle allows quick replacement of a damaged or worn-out spindle unit without waiting through the long lead time for a new one from the manufacturer.
Key features

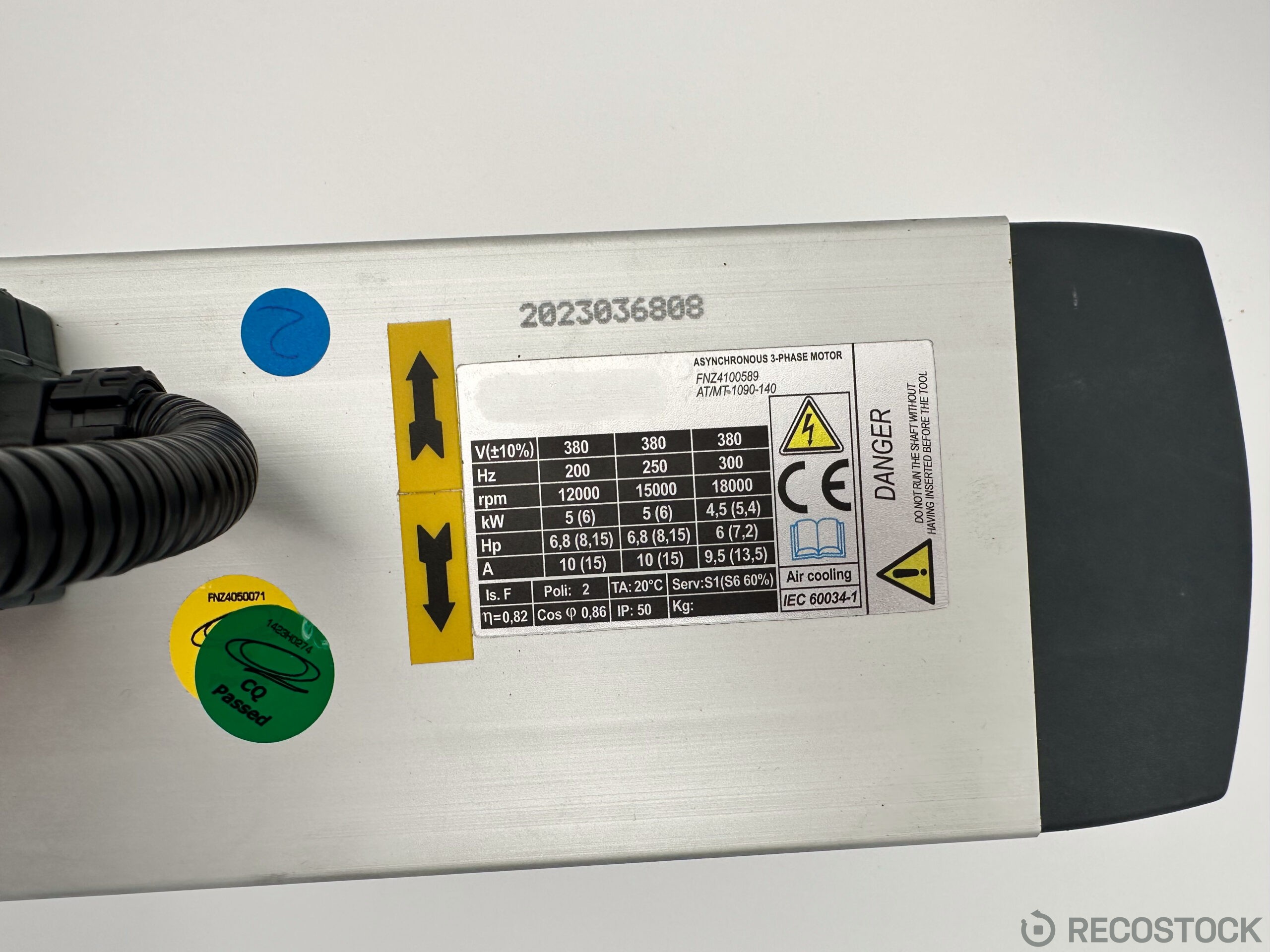

- 3-phase asynchronous motor, 380 V supply (±10%)
- Three operating ranges: 200/250/300 Hz, corresponding to speeds of 12000/15000/18000 rpm
- Power 5(6) kW / 5(6) kW / 4,5(5,4) kW depending on supply frequency

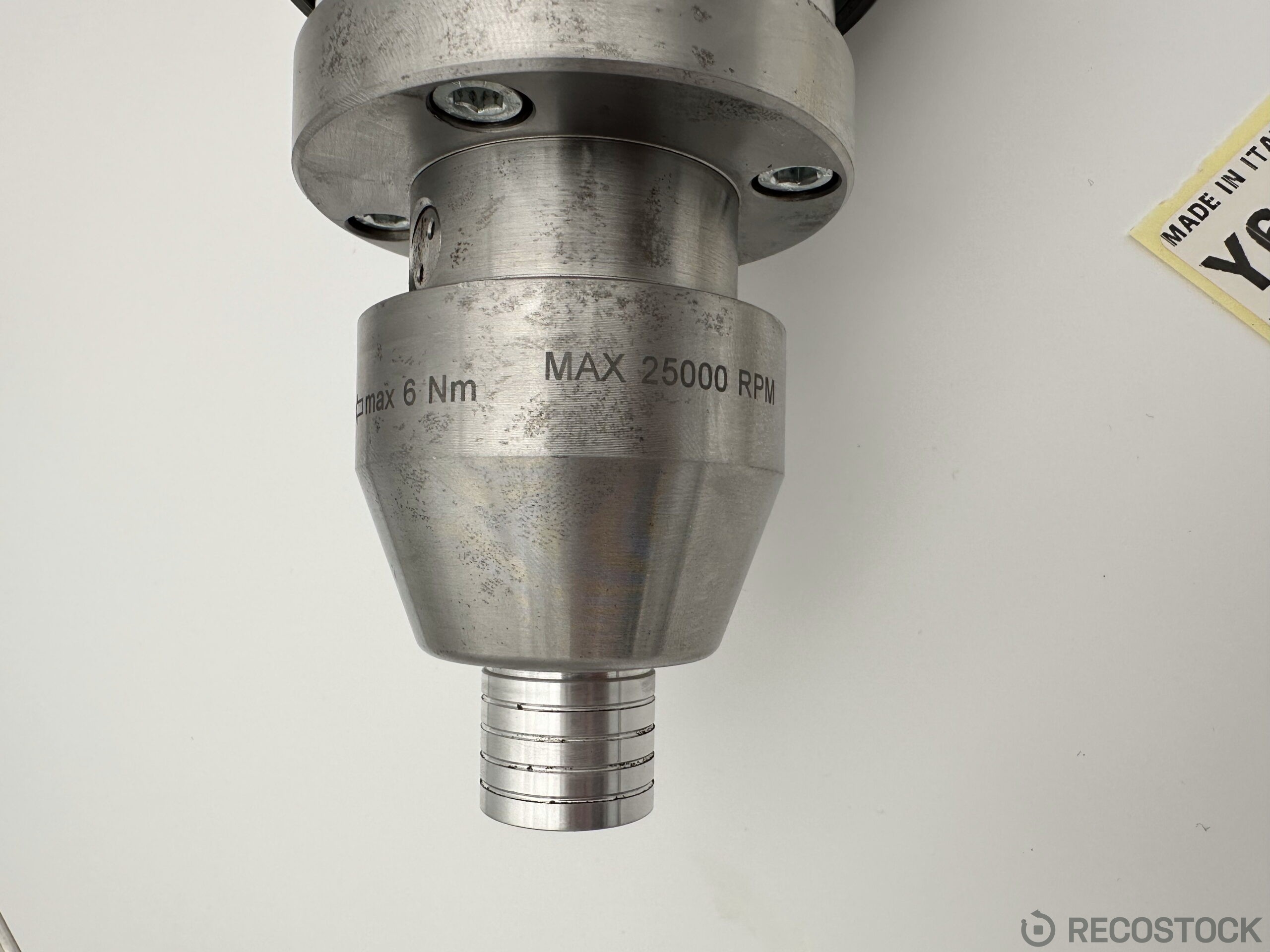

- Maximum tool holder rotational speed: 25000 RPM
- Maximum torque: 6 Nm
- Air cooling, IP50 protection rating

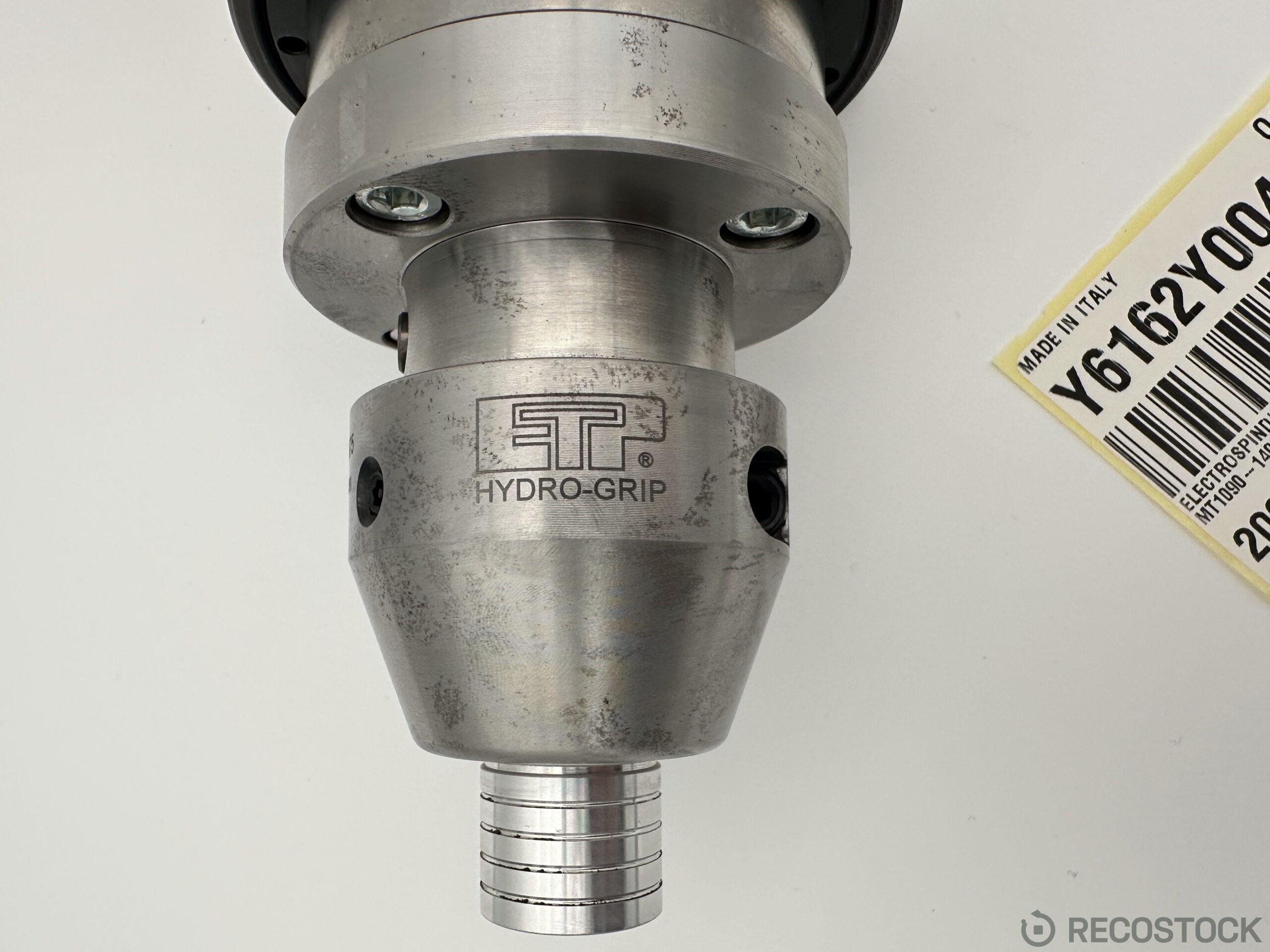

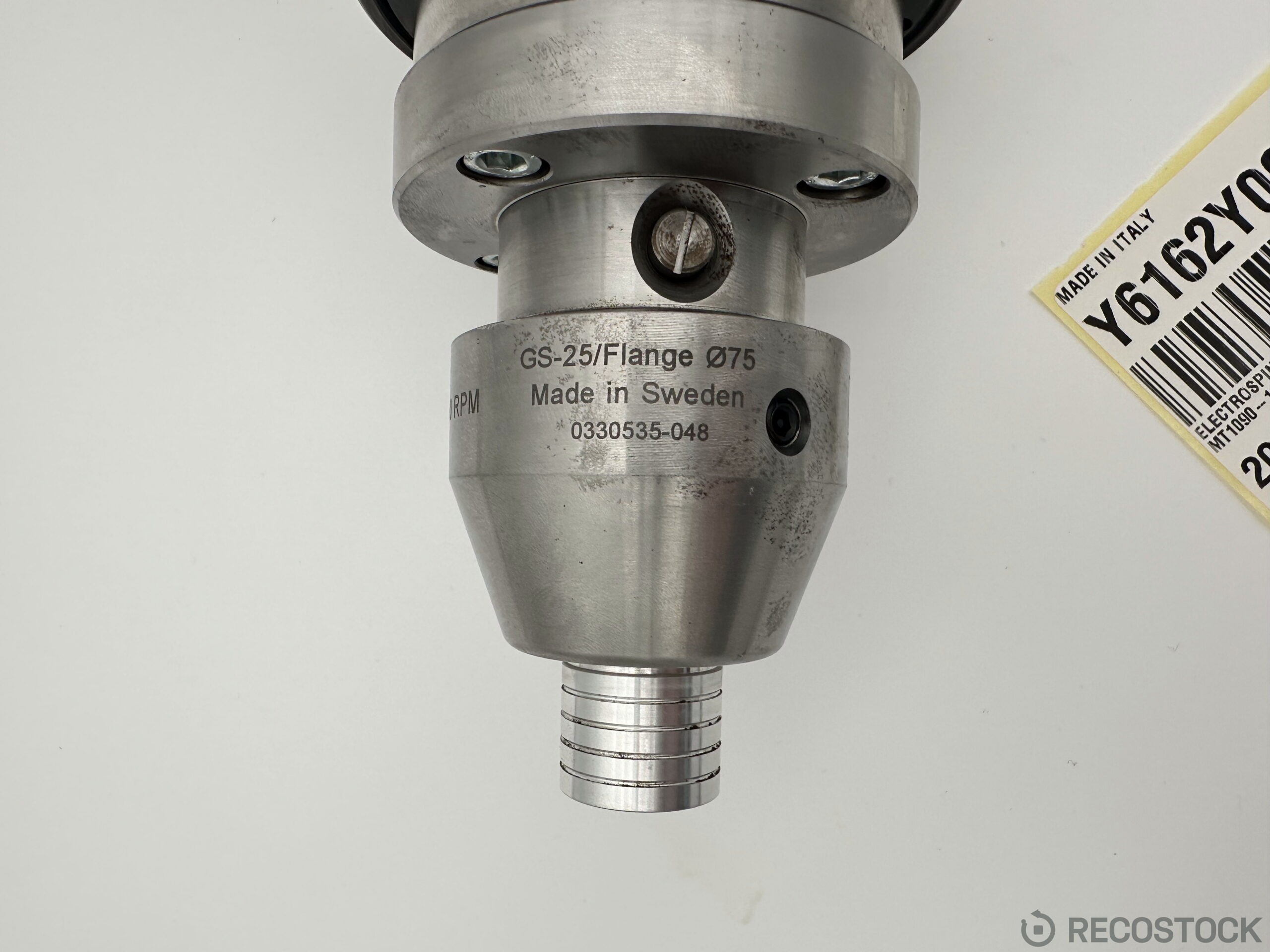

- ETP Hydro-Grip GS-25/Flange Ø75 tool holder, Made in Sweden
- Compliant with IEC 60034-1
